£1,895.00
Heavy Duty Battery Start Boost Jump Pack, 24V. For Buses, Trucks, Plant Machinery and Motor Generators Specifications Part Number GPT24VBP Voltage 24V Battery Capacity (10 hour rate down to 10.8V)...

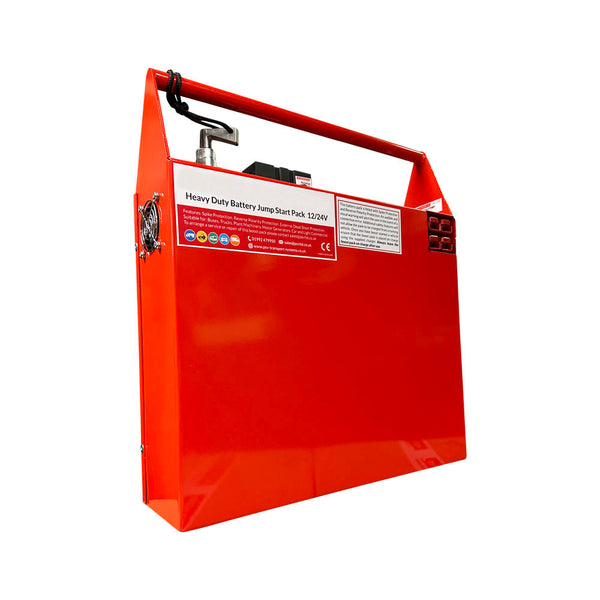

Heavy Duty Battery Start Boost Jump Pack, 24V. For Buses, Trucks, Plant Machinery and Motor Generators
Specifications
| Part Number | GPT24VBP |
| Voltage | 24V |
| Battery Capacity (10 hour rate down to 10.8V) | 26Ah |
| True Peak Power Transfer Current | 1000 Amps |
| Width | 382mm |
| Depth | 110mm |
| Height | 490mm |
| Weight | 25kg |
| For Equipment Starting | Buses, Trucks, Plant Machinery, Motor Generators |
Related Parts
| Part Number | GPT24VBP | GPT24VHDBP | GPT1224VBP | GPT1224VHDBP |
| Voltage | 24V | 24V | 12/24V | 12/24V |
| Battery Capacity (10 hour rate down to 10.8V) | 26Ah | 37Ah | 52/26Ah | 74/37Ah |
| True Peak Power Transfer Current | 1000 Amps | 1500 Amps | 2000/1000 Amps | 3000/1500 Amps |
| Width | 382mm | 490mm | 382mm | 490mm |
| Depth | 110mm | 110mm | 110mm | 110mm |
| Height | 490mm | 490mm | 490mm | 490mm |
| Weight | 25kg | 32kg | 26kg | 33kg |
| For Equipment Starting | Buses, Trucks, Plant Machinery, Motor Generators | Buses, Very Large Trucks, Very Large Plant, Very Large Motor Generators | Buses, Trucks, Plant Machinery, Motor Generators | Buses, Very Large Trucks, Very Large Plant, Very Large Motor Generators |
Accessories
| Part Number | Description |
| GPTBPCHAR | 24V Jump Start Boost Pack Charger |
| GPTBPREL | Masterswitch Relay 24V, 150 Amp |
| GPTBPFUSHOL | Mega Fuse Holder |
| GPTBPFUSE | Dark Green Mega Type Fuse |
| GPTBPTROL | Heavy Duty Trolley |
| GPTBPSTR | Tie Down Strap, 5m x 25mm |
| GPTBPTROLW | Wheels for Heavy Duty Jump Start Boost Pack Trolley |
| GPT24VLEAD-175A-2.3M | Jump Leads, Booster Plug to 175 Amp Connector, 2.3 Metre Length |
| GPT24VLEAD-350A-2.3M | Jump Leads, Booster Plug to 350 Amp Connector, 2.3 Metre Length |
| GPT24VLEAD-PLG-5M | Jump Leads, Booster Plug to Booster Plug, 5 Metre Length |
| GPT24VLEAD-PLG-10M | Jump Leads, Booster Plug to Booster Plug, 10 Metre Length |
| GPT24VSKT | Booster Socket |
| GPT24VPLG | Booster Plug |
| GPTCON50RED | Red High Current Connector 50 Amp |
| GPTCON175RED | Red High Current Connector 175 Amp |
| GPTCON350RED | Red High Current Connector 350 Amp |
| GPTCON50GREY | Grey High Current Connector 50 Amp |
| GPTCON175GREY | Grey High Current Connector 175 Amp |
| GPTCON350GREY | Grey High Current Connector 350 Amp |
| GPTCONHAN50 | Handle for 50 Amp High Current Connector |
| GPTCONHAN175 | Handle for 175 and 350 Amp High Current Connector |
Features
| Property | Data |
| Protection | Voltage Spike Snubbers |
| Auto Lockout for | Reverse Polarity Protection, Timed switch off after 9 minutes, Battery External Venting if abused, External Dead Short Protection, Welded Contactors, Wrong Voltage and Low Pack Battery Voltage |
| Ventilation and Cooling UPGRADE | Case Extractor Fan |
| Overcharge Protection UPGRADE | Avoids the pack being overcharged if it is left connected to a running vehicle |
| Reverse Polarity Full Protection UPGRADE | In addition to visual indicators already in specification |
| Audible and Visual | Low Battery Warning Siren |
| Indicators | Battery Cut-out Siren |
| Green Power on LED | |
| Red Reverse Polarity LED | |
| Electronic Monitoring | 24V Charger and Time out Usage |
